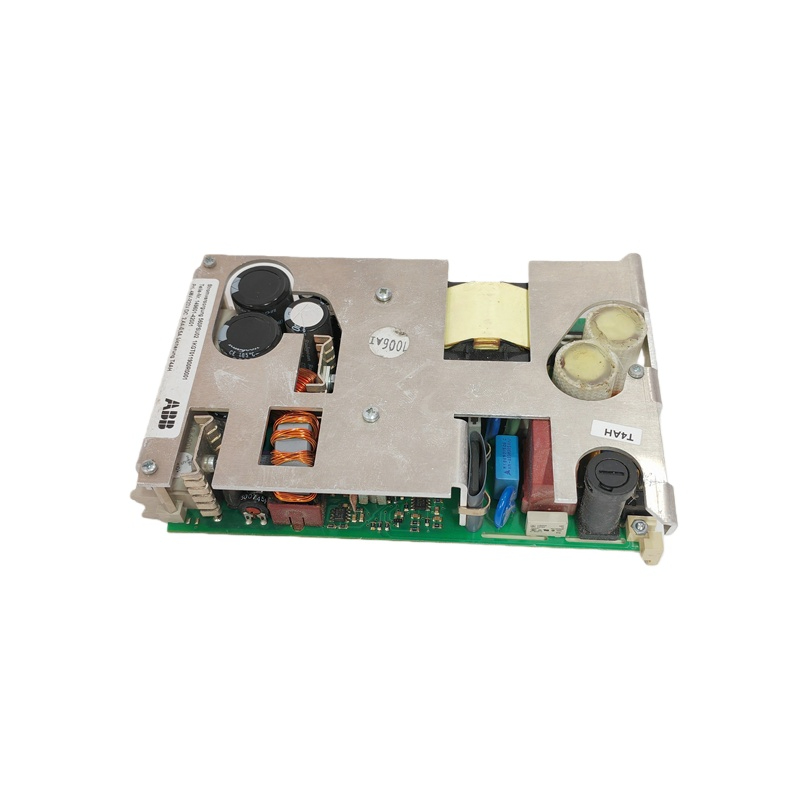

ABB 560PSU02 1KGT011900R0001 power supply module

First hand source, affordable price. Spot inventory!

•Shipping Port: Xiamen

•Manager: Rhonda

•E-mail: xrjtina@gmail.com

•Tel: + 86-15359273796（WhatsApp）

•Ship to you via Fedex/DHL/TNT/UPS/EMS

•Package: Original packing with cartons

ABB 560PSU02 1KGT011900R0001



1. Core Functions and Applications
System Positioning: This module is a key component of the ABB System pro M Compact series, specifically designed for RTU560 series subracks.
Primary Function: It provides stable DC power support to ensure reliable operation of communication units (CMUs) and other control modules within RTU560 subracks (such as 560MPR03 and 560SFR02).

2. Key Technical Specifications
Voltage and Power:

• Input Voltage: 48 VDC to 220 VDC, supporting a wide range of DC input.
• Output Voltage: 5 VDC and 24 VDC, compatible with various industrial equipment requirements.
• Power Rating: 85 W, providing sufficient power capacity.
• Rated Current: 16 A, suitable for high-load operating environments.

Safety and Protection: Features breaking capacity (6 kA), number of poles (3P), and protections such as input overvoltage and reverse polarity protection, ensuring safe system operation under abnormal conditions.

3. Physical Characteristics and Environmental Adaptability

• Dimensions and Weight: 14.5 cm × 5.5 cm × 20.4 cm, approximately 0.666 kg, facilitating easy installation and maintenance.
• Operating Temperature Range: −25°C to +70°C, suitable for harsh industrial environments.
• Mounting Method: DIN-rail mounting; supports redundant configuration (two units operating in parallel to enable fault switchover).

4. Typical Applications

• Industrial Automation: Widely used in industrial automation control systems to provide essential power supply.
• Power Systems: Suitable for power monitoring and control equipment.
• Transportation and Buildings: Applied in transportation and building automation systems to support the operation of critical control units.
